Our lab utilizes a diverse range of sensors to support research in autonomous systems, intelligent transportation, and environmental monitoring. These sensors enable real-time data collection for navigation, obstacle detection, mapping, and situational awareness across our fleet of unmanned surface and underwater vessels. Below is a list of our newly acquired sensors:


Cerulean Omniscan 450 Side Scan Sonar

Cerulean Omniscan 450 Side Scan Sonar

Description

The Cerulean Omniscan 450 is a compact side-scan sonar module that emits acoustic pulses and captures returning echoes to produce detailed imagery of the seafloor. Mountable on uncrewed vessels (ROVs/USVs) or fixed platforms, it’s ideal for seabed mapping, shipwreck hunting, marine archaeology, ecosystem surveys and search-and-recovery operations.

What is Side Scan Sonar?

A side scan sonar is a type of imaging sonar that allows you to quickly collect imagery of the seafloor to map large areas. The side scan transducers have a narrow, tall beam shape so that when they are mounted to either side of the boat, they have a full 180 degree view under the boat. When scanning, the transducers emit an acoustic pulse and then record the response as echoes return from the seafloor. That creates a slice of an image and as the boat moves forward, the image is filled in. This side scan sonar uses 450 kHz transducers, which provide a 150 meter range with detailed resolution. For the full datasheet, please visit the Official Manufacturer’s website.

Real-time, georeferenced sidescan imagery with automated bottom removal and 3D vehicle tracking

  • Transducer Frequency: 450 kHz
  • Range Resolution: Up to 1/1200 of the selected range
  • Maximum Slant Range: 150 m
  • Maximum Ping Rate: 20 pps (at ≤ 30 m)
  • Beam Pattern: 0.5° horizontal × 50° vertical
  • Supply Voltage: 10–30 V DC
  • Power Consumption: Idle 5 W / Max 10 W
  • Interface: 100Base-T Ethernet with open programming API
  • Depth Rating: 50 m (with M14 adapter) / 300 m (without adapter)

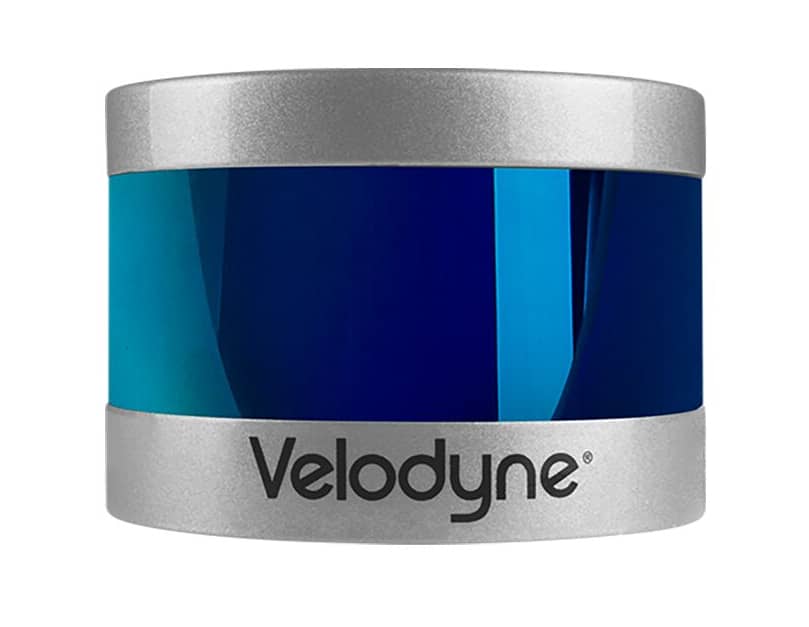

Velodyne marine sensor

Velodyne VLP-16 (Puck) LiDAR

Compact 3D LiDAR sensor with 16 laser channels, providing 360-degree horizontal and 30-degree vertical field of view. Detects objects up to 200 meters and captures up to 600,000 points per second, enabling high-resolution environmental mapping.

View Specifications

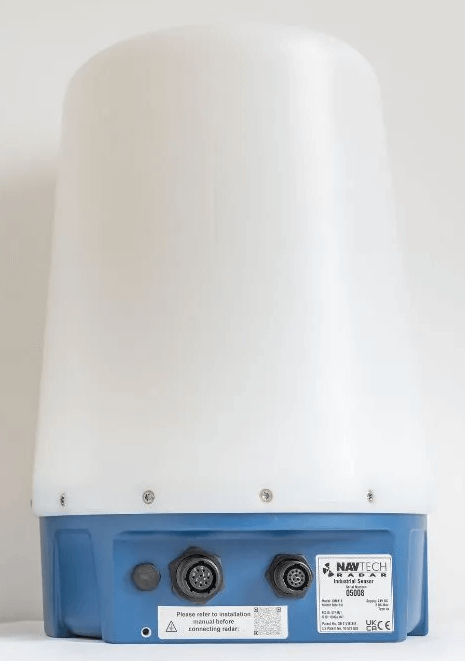

Navtech marine equipment

Navtech RS6 RADAR

Long-range, millimeter wave radar. A high-resolution 360-degree radar sensor used for real-time object detection and tracking in autonomous and industrial applications. Reliable in all weather conditions, ideal for navigation and perimeter monitoring. Long-range capability and high update rate enhance situational awareness, especially in environments where cameras and LiDAR struggle due to fog, rain, or low visibility.

View Specifications

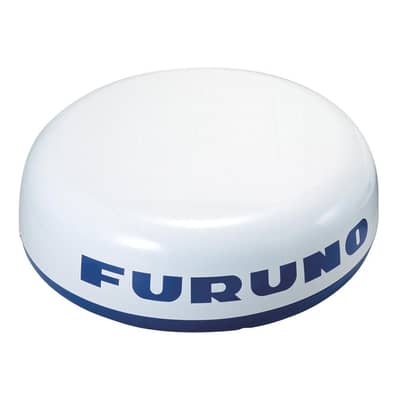

Furuno dome radar

Furuno DRS4DL RADAR

A 4 kW radar sensor housed in a compact 19-inch radome, providing an effective range of up to 36 nautical miles. It features a 5.2-degree horizontal beamwidth antenna and operates at a fixed rotation speed of 24 RPM. The DRS4DL+ utilizes real-time digital signal processing to deliver clear target detection.

View Specifications

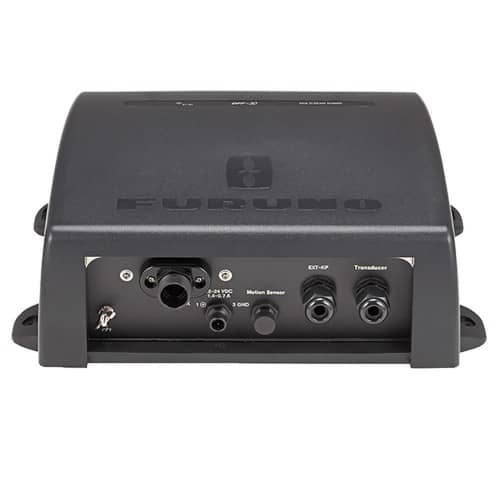

Furuno connection box

Furuno DFF3D SONAR

Advanced multi-beam sonar module that integrates with multi-function displays and offers a real-time visualization of seabed structures. The system offers a sidebar detection range of up to 200 meters and a main beam penetration depth of approximately 300 meters, depending on conditions.

View Specifications
